| Code | 663897 | Type | Miniature Dovetail Stage Top Plate | |
| Platform Dimensions | 26.0 × 25.0mm | Countersunk Mounting Hole Dimensions | M4 | |
| Threaded Hole Dimensions | M3 x 12, M4 x 4 | Overall Dimensions | 26.0 × 25.0 × 8.0mm | |
| Material | 6061-T6 Aluminum Alloy | Surface Treatment | Black Anodizing |
Traders City price 29.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Two 4 mm-wide central key slots for alignment of assembly components
Positioning edges prevent misalignment during mounting
M3 and M4 threaded mounting holes offer additional installation options

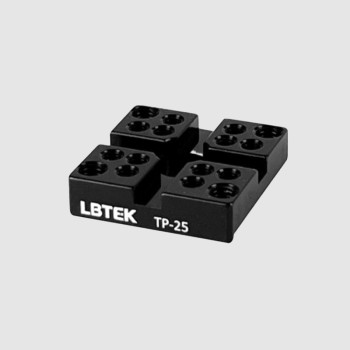

The LBTEK miniature dovetail stage top plate features a central M4 countersunk hole for mounting the miniature dovetail stage. Reference edges along the bottom perimeter help prevent undesired rotation when attaching the plate to a translation stage. The top surface includes two orthogonal 4 mm-wide key slots for convenient alignment of assemblies. Additionally, twelve M3 and four M4 threaded holes are available for securing and installing various components.
