| Code | 663883 | Type | Fiber Clamp and Accessories |
|
| Material | 6061-T6 Aluminum Alloy | Surface Finish | Black Anodized |
| Clamping Diameter | Ø150μm – Ø341μm | Dimensions | 24mm × 15.2mm × 19.8mm |
| Bottom Thread Specification | M4 Threaded Hole |
Compatible with Ø12.7 mm Optical Mounting Posts
Precision Zirconia V-Groove for Clamping Ø150 μm – Ø341 μm Fibers
Soft Polyurethane Strip Protects the Fiber Coating During Clamping

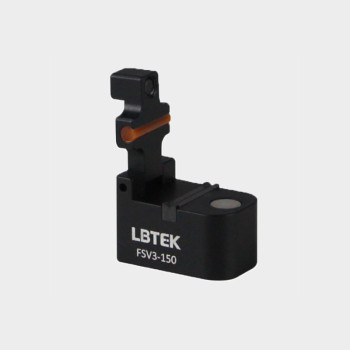

The LBTEK FSV3 Fiber Clamp features a precision zirconia V-groove and a soft polyurethane rubber strip, designed to gently secure the fiber on its coated buffer layer without causing damage. The magnetic holding force can be fine-tuned using an integrated M4 set screw for optimal clamping performance.
An M4 threaded hole on the bottom allows the FSV3 to be mounted onto standard Ø12.7 mm optical posts, or integrated into optical systems on breadboards or optical tables. This clamp is ideal for flexible and secure fiber positioning in laboratory or industrial environments.
