| Code | 663882 | Type | Fiber Clamp and Accessories |
|
| Clamping Diameter | Ø150μm~Ø341μm | Material | 304 Stainless Steel |
| Surface Finish | Nickel-Plated | Included Accessory | 1 × Hex Wrench (Allen Key) |
| Bottom Thread Specification | M4 |
Compatible with LBTEK's FCSS-L5 / FCSS-R5 Five-Axis Stainless Steel Fiber Stages
Precision Zirconia V-Groove for Ø125 μm – Ø280 μm and Ø150 μm – Ø341 μm Fibers
Soft Polyurethane Rubber Strip Provides Gentle Fiber Protection

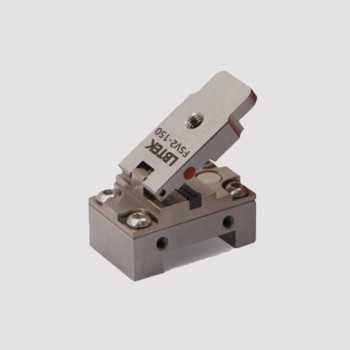

The LBTEK FSV2 Fiber Clamp is designed for mounting optical fibers onto LBTEK’s FCSS-5 series five-axis stainless steel fiber positioning stages, enabling precise alignment. The fiber is gently held in place within a precision zirconia V-groove, while a soft polyurethane pressure strip protects the fiber from damage during clamping.
The lower part of the clamp features a V-shaped profile that mates precisely with the stage, and side screws lock the clamp securely into place. In addition, an M4 threaded hole on the bottom surface allows direct mounting onto standard optical posts or rods for flexible integration.
