| Code | 663875 | Type | Fiber Clamp and Accessories |
|
| Clamping Diameter | 125μm-2.66mm | Main Material | 6061-T6 Aluminum Alloy |
| Surface Finish | 6061-T6 Aluminum Alloy | Weight | 0.019kg |
| Included Accessories | 1 × 2mm Hex Wrench,2 × M4×5 Nylon-Tipped Screws |
Traders City price 195.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Multi-Purpose V-Groove Insert with 5 V-Grooves and 1 Flat Surface
Compatible with Fibers or Cylindrical Optics from Ø125 µm to Ø2.66 mm
Clamp Arm with Adjustment Knob for Controllable Clamping Force

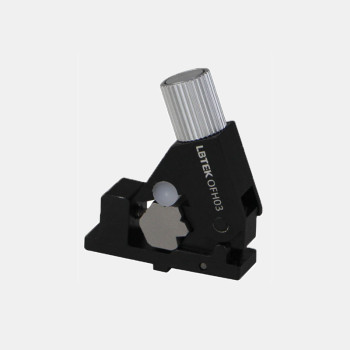

The LBTEK Fiber Clamp features a central slotted insert with six mounting surfaces—five precision V-grooves and one flat surface—designed to accommodate fibers or cylindrical optical components with outer diameters ranging from 125 µm to 2.66 mm.
To use, simply rotate the insert to align the desired groove or flat surface with the clamp arm, then secure it in place using the included M4 set screw. The clamp is engineered for quick and easy installation or removal of various optical elements, including bare fibers.
