| Code | 663872 | Type | Fiber Clamp and Accessories |
|
| Adjustable Range | 0~12mm | Clamping Diameter | Rectangular Fiber Array up to 12mm Wide |
| Material | 303 Stainless Steel | Weight | 0.18kg |
| Surface Finish | Sandblasted |
Supports Rectangular Fiber Arrays up to 12 mm Wide
Knob-Controlled Clamping Mechanism for Easy Loading
Also Suitable for Rectangular Optical Components

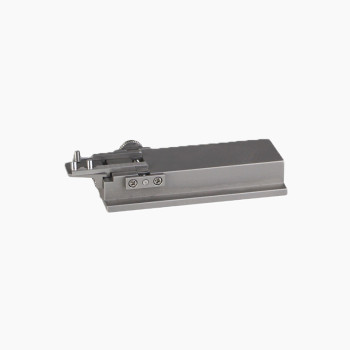

LBTEK offers a precision fiber clamping mount featuring a dual-sided clamping mechanism actuated by a single control knob. This design ensures that the mounted component remains centered on the support surface. Three angled cylindrical contact points apply a gentle downward force and form a stable three-point contact. One of the contact points is located at the end of a flexible arm, allowing the clamp to adapt to optical components of varying sizes. This makes the mount suitable not only for rectangular fiber arrays but also for various rectangular optical elements.
