| Code | 663866 | Type | Fiber Clamp and Accessories |
|
| Clamping Diameter | Ø150 µm~Ø341 µm | Dimensions | 32mm×35mm×20.1mm |
| Material | 6061-T6 Aluminum Alloy & 420 Stainless Steel | Weight | 0.055kg |
| Included Accessories | 2 Plastic-Cased Magnets |
Precision V-Groove Design for Holding Ø150 µm to Ø341 µm Fibers
Durable Stainless Steel Construction Provides a Wear-Resistant Surface
Magnetic Clamps with Soft Elastic Pads to Prevent Fiber Cladding Damage

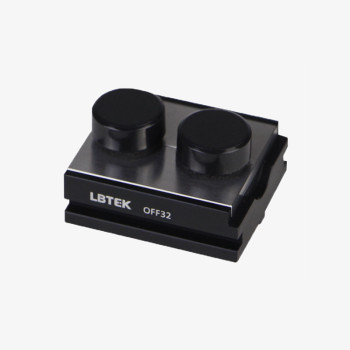

The LBTEK Fiber Holder is ideal for securely holding single-mode bare fibers (with intact coating). It offers simple installation and flexible operation. The fiber is positioned within a precision-machined V-groove and held in place by two magnetic clamps. Each clamp features a specially designed elastic pad that gently deforms around the fiber, providing a firm yet delicate clamping force.
The base of the holder is made from anodized aluminum for corrosion resistance, while the top plate is constructed from magnetic stainless steel to ensure stable magnetic clamping.
