| Code | 663860 | Type | 40mm Stainless Steel Right-Angle Adapter Plate | |
| Mounting Hole Center-to- Center Distance | 32mm、20mm | Material | 303 Stainless Steel | |
| External Dimensions | 65.0 × 65.0 × 50.0mm | Mounting Hole Specification | M3 Threaded Holes, M3 Countersunk Holes, M2 Countersunk Holes | |
| Surface Treatment | Sandblasted + Passivated | Included Mounting Screws Specifications / Quantity | M3 Socket Head Cap Screws / 6 pcs, M2 Socket Head Cap Screws / 2 pcs |
Traders City price 80.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Material: Stainless Steel
Surface Treatment: Sandblasted + Passivated
Mounting Hole Specifications: M3 Threaded Holes, M3 Countersunk Holes, M2 Countersunk Holes

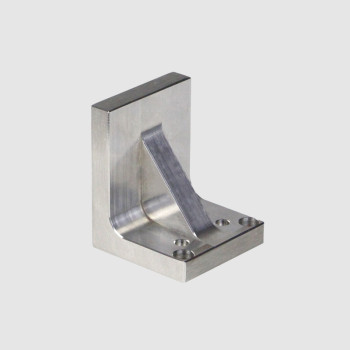

LBTEK’s 40 mm Right-Angle Three-Axis Adapter Plate is designed for use with 13 mm stainless steel manual translation stages and is typically employed for vertical assembly of two stages. An XY manual translation stage and a single-axis manual stage can be combined into an XYZ linear stage using this adapter plate. Alternatively, two single-axis manual stages can be assembled into an XZ linear stage configuration using the same plate.
