| Code | 663856 | Type | Piezo Stage Connection Cable | |
| Length | 20cm |
Compatible Products |
LBMS15 Series Translation Stages | |
| Connector Type | 2-pin HRS Plug, 2-pin MMCX Female Connector |
Simple Connector Plug-in/Unplug Design
Compatible with Piezo Linear Stages

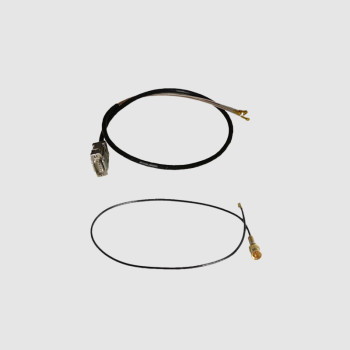

LBTEK provides connection cables for piezo stages that are compatible with different models of piezo linear stages. The LBCK15 cable features a 2-pin HRS plug on one end and a 2-pin MMCX female connector on the other, designed for the LBMS15 series piezo linear stages. The LBCK30 cable is equipped with a DB9 male connector on one end and three 2-pin MMCX female connectors on the other, suitable for the LBMS30 series stages. The piezo stages are connected to their controllers via these adapter cables. The LBMS15 series stages require an LBCK15 cable to convert and connect to the LBCK30 cable, which then links to the controller. In contrast, the LBMS30 series stages can be connected directly to the controller using the LBCK30 cable.
