| Code | 663851 | Type | Fiber Endface Inspection Microscope | |
| Weight | 0.55kg (device only, without batteries); 0.7kg (with accessories and packaging) | Magnification | 400X | |
| Light Source |
LED, 10,000 hours lifetime | Dimensions (L × W × H) | Device only: 225 × 55 × 40mm Packaging box: 255 × 105 × 65mm |
|
| Battery |
3 × AAA dry batteries |
Illumination Modes | Coaxial illumination | |
| Observation Method |
Visual (eyepiece) |
Adapter Size | 1.25mm / 2.5mm |
200× / 400× Magnification Options
Includes both 1.25 mm and 2.5 mm adapter ferrules
Compatible with SC, FC, LC, and ST connectors

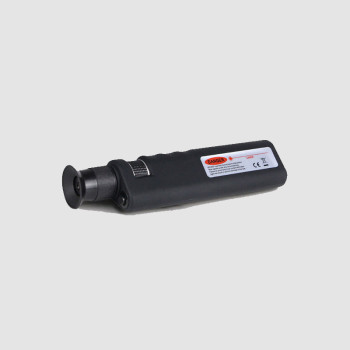

The LBTEK Fiber Endface Inspection Microscope provides high-quality, low-distortion imaging of fiber endfaces and surrounding areas. Equipped with a high-intensity illumination system and 200× / 400× magnification options, it delivers clear images of the fiber core and cladding. The microscope comes with 1.25 mm and 2.5 mm adapter ferrules for versatile use.
Note: This inspection microscope must not be used on fibers connected to active light sources. Ensure the fiber is disconnected or the light source is turned off before inspection. Please refer to the technical instruction label for operating guidelines.
