| Code | 663844 | Type | Isolator Mounting Bracket | |
| Bottom Threaded Hole Specification | M6 | Compatible Isolator Size | 60.0 x 60.0 x 72.5mm | |
| Thread Specifications on Both Ends | SM1(1.035" - 40) | Compatible System | 30mm Coaxial System |
|
| Material | 6061-T6 Aluminum Alloy | Surface Treatment | Black Anodizing |
Compatible with 30 mm Coaxial System
SM1 Threaded Ports on Both Ends
Bottom Equipped with Five M6 Threaded Holes at 25 mm Spacing
Integrated Protective Cover Included
Includes two M6×16 socket set screws with flat tips for supporting the isolator bracket.
Includes two φ3×8 dowel pins and two M6×16 screws for precise isolator mounting.

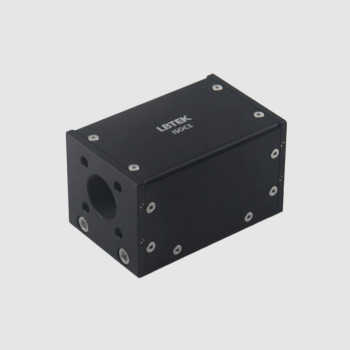

This isolator mounting bracket is compatible with standard 30 mm coaxial systems. Each coaxial port features a side-mounted locking screw that can be tightened using a 1.5 mm hex key. The integrated protective cover provides both light shielding and mechanical protection for the isolator. The base includes five M6 threaded holes spaced 25 mm apart for secure support. The front and rear plates are equipped with SM1 threaded ports and are precisely aligned with the base plate using dowel pin holes to ensure the overall alignment and stability of the system.
