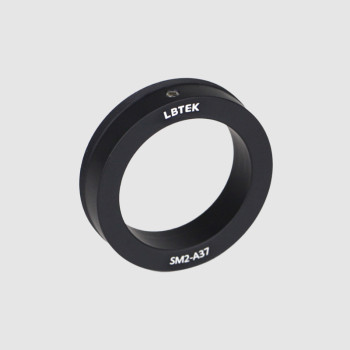

| Code | 663837 | Type | Laser Beam Expander Adapter | |
| Inner Diameter Size | 37.8mm | Outer Diameter Size | 50.8mm / SM2 | |
| Dimensions | 50.8 × 12.0mm | Material | 6061-T6 Aluminum Alloy |
|
| Surface Treatment | Black Anodizing |
Traders City price 43.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Smooth Outer Surface Ø2", Threaded End SM2
Ø37.8 mm Smooth Inner Diameter, Secured with Nylon-Tipped Set Screw
Compatible with LZBE Series Variable Magnification Beam Expanders
The LBTEK laser beam expander adapter is designed for mounting and adapting LZBE series variable magnification laser beam expanders. It allows integration into opto-mechanical assemblies such as adjustment mounts or coaxial systems with Ø2" smooth bore holes or SM2-threaded ports. The expander is secured via a side-mounted M4 nylon-tipped set screw, which prevents rotation and axial displacement, ensuring precise alignment with the optical axis. The M4 nylon-tipped set screw can be adjusted and tightened using a 2.0 mm hex key.
