| Code | 663835 | Type | Connecting Arm | |
| Thread Specifications | M3 | Dimensions | 195.7 × 76.2 × 11.7mm | |
| Material | 6061-T6 Aluminum Alloy |
Surface Treatment | Black Anodizing | |
| Weight | 0.298kg | Included Screw Specifications / Quantity |
M4 × 8 Set Screws with Pointed End / 3 pcs and M3 × 6 Cylindrical Head Hex Socket Screws / 6 pcs |

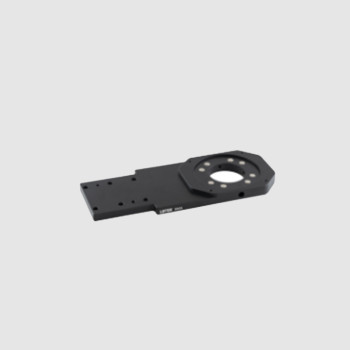

LBTEK's Dual Objective Mount is used to mount objectives or other optical components along the experimental optical path. The two mounting interfaces enable quick switching between different objectives, making it ideal for systems that require a low magnification objective for target area search and a high magnification objective for imaging. When switching objectives, the manual slider with a pawl can be pushed. Note that the mount does not include objectives.
LBTEK's Dual Objective Mount is made from 6061-T6 aluminum alloy, offering high precision and excellent rigidity. It comes with two M32×0.75 threaded holes, with a center-to-center distance of 63.5 mm, allowing for the installation of objectives with different magnifications. If you need to install objectives with other thread specifications, you can use LBTEK's Thread Adapters or contact technical support for custom solutions.
