| Coad | 663785 | Type | Six-Axis Fiber Coupling Stage | |
| Self Weight(Kg) | 2.5 | θX, θYTravel(°) | ± 3 | |
| θZTravel(°) | ± 4 | Series | Right-Handed Coordinate System | |
| θX Resolution | 0.49' | θY Resolution | 0.46' | |
| θZ Resolution | 0.55' | XYZ Resolution | coarse:10μm;fine:0.5μm | |
| XYZ Travel | coarse:±6.5mm; fine:±0.3mm | XYZ Axis Motion Straightness | - | |
| Material | Aluminum Alloy | Table Diameter | - | |
| Platform Mounting Holes | - | Mounting Hole Specifications | - | |
| Horizontal Load | - | Vertical Load | - | |
| Optical Axis Height | 130.0mm | Mounting Platform Height | - | |
| Surface Treatment | Black Anodized | Accessories Included | M6x12 socket head cap screws x4 |

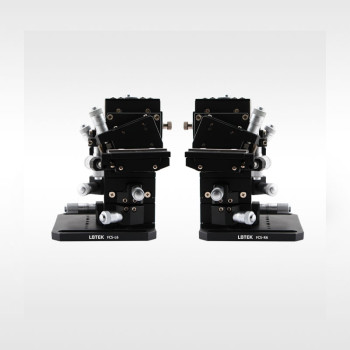

The LBTEK Six-Axis Fiber Coupling Stage is designed with six imported cross-roller bearing guides and nine micrometers, offering a compact structure, high precision, and high load capacity. Each of the X, Y, and Z axes is equipped with both coarse and fine micrometer heads. The coarse travel range is ±6.5 mm with a resolution of 10 μm, while the fine travel range is ±0.3 mm with a differential mechanism resolution of 0.5 μm. The three angular adjustment axes provide precise rotation: θx with ±3° travel and 0.49′ resolution, θy with ±3° travel and 0.46′ resolution, and θz with ±4° travel and 0.55′ resolution. This stage is widely used for multi-core device alignment, particularly in applications requiring optical axis and rotational adjustments of fiber arrays and optical waveguides.
LBTEK also provides the CAP-1 adapter plate for compatibility with the FSV2 series fiber holders and the MAP-1 adapter plate for use with the FMA series fixed mounts. Built on a high-resolution manual XYZ stage combined with θx, θy, and θz angular stages, it achieves full six-axis adjustment. The base plate includes two M6 slotted mounting holes for secure fixing, and each stage is supplied with four M6 socket head cap screws.
