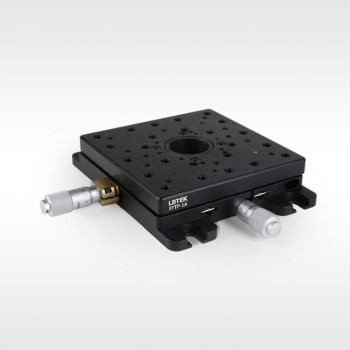

| Coad | 663766 | Type | XY-Axis Translation Stage | |
| Table Size(mm) | 106.0 x 106.0 | Self Weight(Kg) | 0.7 | |
| Maximum Horizontal Load(Kg) | 4.5 | Maximum Vertical Load(Kg) | 0.9 | |
| Z-Axis Load Capacity | - | Travel Range | 13.0mm | |
| Maximum Clamping Thickness | 15mm | Thread Specification | M6 | |
| Surface Treatment | Ground and Black Anodized | Displacement Stage Height | 25.4mm | |
| Dimensions | - | Multi-Axis Assembly Method | - | |
| Bottom Positioning Hole Type | - | Material | 6061-T6 Aluminum Alloy | |
| Adjustment Precision | - | Micrometer Head Minimum Scale | 10μm | |
| Surface and Base Parallelism | ＜90μm | Motion Parallelism | ＜40μm | |
| Motion Straightness | - | Thread Hole Spacing | - | |
| Axes | 2 | Accessories Included | - | |
| Driver Position | - | Applicable Optical Component Diameter | 25.4mm |
Traders City price 707.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
