| Coad | 663765 | Type | XY-Axis Translation Stage | |
| Table Size(mm) | 108.0 x 108.0 | Self Weight(Kg) | 0.8 | |
| Maximum Horizontal Load(Kg) | 4.5 | Maximum Vertical Load(Kg) | 0.9 | |
| Z-Axis Load Capacity | - | Travel Range | 13.0mm | |
| Maximum Clamping Thickness | 15mm | Thread Specification | M6 | |
| Surface Treatment | Ground and Black Anodized | Displacement Stage Height | 25.4mm | |
| Dimensions | - | Multi-Axis Assembly Method | - | |
| Bottom Positioning Hole Type | - | Material | 6061-T6 Aluminum Alloy | |
| Adjustment Precision | - | Micrometer Head Minimum Scale | 10μm | |
| Surface and Base Parallelism | ＜90μm | Motion Parallelism | ＜40μm | |
| Motion Straightness | - | Thread Hole Spacing | - | |
| Axes | 2 | Accessories Included | - | |
| Driver Position | - | Applicable Optical Component Diameter | 25.4mm |

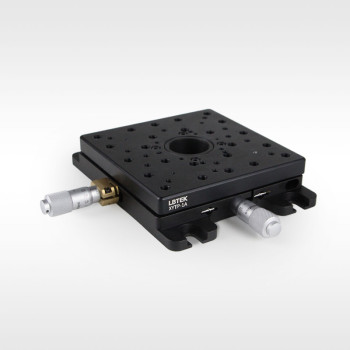

The LBTEK XY two-axis displacement stage features a low-profile design, with a central SM1 threaded hole for mounting optical components with a diameter of 25.4 mm. This design is ideal for imaging systems requiring bottom illumination. The stage allows for X and Y movements without affecting the SM1 through-hole. In addition to the SM1 mounting hole, the displacement stage includes a series of M3, M4, and M6 threaded holes for mounting the stage and other components, making it compatible with 30 mm and 60 mm coaxial systems. The stage surface can accommodate microscope slide spring clips. LBTEK offers both fixed platforms and XY-axis displacement stages with a rotating platform.
The LBTEK XY-axis displacement stage also features a low-profile design and utilizes a micrometer head with a minimum scale of 10 μm and a 13 mm travel range. The central SM1 threaded hole can mount optical components with a diameter of 25.4 mm and a maximum thickness of 15 mm, making it ideal for systems that require bottom illumination. The X and Y movements do not affect the SM1 through-hole. The XY-axis stage includes a fixed installation platform, with additional M3, M4, and M6 threaded holes for the stage installation and for attaching other components. The M3 threaded holes around the central hole and on the bottom are compatible with 30 mm and 60 mm coaxial systems. The M4 threaded holes, along with pin holes, are suitable for installing microscope slide spring clips.
