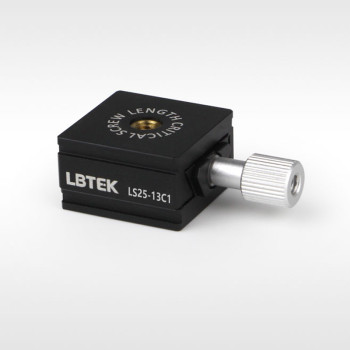

| Coad | 663763 | Type | Miniature Dovetail Translation Stage | |
| Table Size(mm) | 25.0 x 25.0 | Self Weight(Kg) | 0.1 | |
| Maximum Horizontal Load(Kg) | - | Maximum Vertical Load(Kg) | 0.2 | |
| Z-Axis Load Capacity | - | Travel Range | - | |
| Maximum Clamping Thickness | - | Thread Specification | M4 | |
| Surface Treatment | - | Displacement Stage Height | 55.0mm | |
| Dimensions | 43.0 x 57.8 x 72.3mm | Multi-Axis Assembly Method | - | |
| Bottom Positioning Hole Type | M6 / 1Piece | Material | 6061-T6 Aluminum Alloy | |
| Adjustment Precision | 0.35mm per turn | Micrometer Head Minimum Scale | - | |
| Surface and Base Parallelism | - | Motion Parallelism | - | |
| Motion Straightness | - | Thread Hole Spacing | - | |
| Axes | 2 | Accessories Included | 1 x 1.5mm Hex Wrench，1 x M6×12mm Countersunk Hexagon Socket Cap Screw | |
| Driver Position | End Direct Drive | Applicable Optical Component Diameter | - |
Traders City price 242.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
