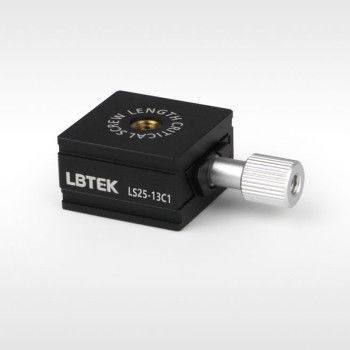

| Coad | 663762 | Type | Miniature Dovetail Translation Stage | |
| Table Size(mm) | 25.0 x 25.0 | Self Weight(Kg) | 0.075 | |
| Maximum Horizontal Load(Kg) | 1 | Maximum Vertical Load(Kg) | 0.2 | |
| Z-Axis Load Capacity | - | Travel Range | - | |
| Maximum Clamping Thickness | - | Thread Specification | M4 | |
| Surface Treatment | - | Displacement Stage Height | 35.6mm | |
| Dimensions | 52.0 x 45.5 x 35.6mm | Multi-Axis Assembly Method | - | |
| Bottom Positioning Hole Type | M6 / 1Piece | Material | 6061-T6 Aluminum Alloy | |
| Adjustment Precision | 0.35mm per turn | Micrometer Head Minimum Scale | - | |
| Surface and Base Parallelism | - | Motion Parallelism | - | |
| Motion Straightness | - | Thread Hole Spacing | - | |
| Axes | 2 | Accessories Included | 1 x 1.5mm Hex Wrench，1 x M6×12mm Countersunk Hexagon Socket Cap Screw | |
| Driver Position | End Direct Drive | Applicable Optical Component Diameter | - |
Traders City price 201.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
