| Coad | 663761 | Type | Miniature Dovetail Translation Stage | |
| Table Size(mm) | 25.0 x 25.0 | Self Weight(Kg) | 0.03 | |
| Maximum Horizontal Load(Kg) | 1 | Maximum Vertical Load(Kg) | 0.2 | |
| Z-Axis Load Capacity | - | Travel Range | 13.0mm | |
| Maximum Clamping Thickness | - | Thread Specification | - | |
| Surface Treatment | Black Anodizing | Displacement Stage Height | 14.8mm | |
| Dimensions | - | Multi-Axis Assembly Method | - | |
| Bottom Positioning Hole Type | - | Material | 6061-T6 Aluminum Alloy | |
| Adjustment Precision | 0.35mm per turn | Micrometer Head Minimum Scale | - | |
| Surface and Base Parallelism | - | Motion Parallelism | - | |
| Motion Straightness | - | Thread Hole Spacing | - | |
| Axes | 1 | Accessories Included | - | |
| Driver Position | End Direct Drive | Applicable Optical Component Diameter | - |

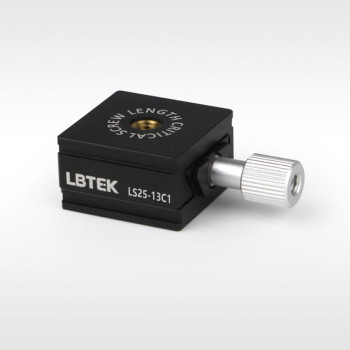

The LBTEK micro dovetail displacement stage features a compact design, making it suitable for use in space-constrained areas with moderate positioning requirements. The stage surface measures 25 mm × 25 mm, with a maximum travel range of 13 mm. It uses M3×0.35 precision adjustment threads for fine movement. The side of the stage includes a locking screw, which can be tightened using a 1.5 mm hex wrench to secure the stage in place and prevent accidental movement.
The bottom of the stage has an M4 threaded hole for mounting onto Ø12 mm optical rods, while the top features an M4 threaded hole for attaching optical component mounts or other accessories.
Accessories:
· A top mounting plate adapter is provided, including a range of M3 and M4 mounting adapters and keyways, facilitating the installation of our 30 mm coaxial system accessories.
· A base plate conversion bracket is available for mounting the stage onto optical workbenches, providing configurations for both two-axis and three-axis setups. It can also be used for single-axis displacement stages.
· A right-angle conversion bracket allows easy assembly of the stage into XZ, YZ, or XYZ configurations. It can also be fitted with a rotation adapter to allow the stage to rotate 360°.
· Additionally, a coaxial system adapter is available for mounting the displacement stage using the 60 mm coaxial system.
The LBTEK micro dovetail displacement stage has a surface size of 25 mm × 25 mm, a maximum travel of 13 mm, and uses M3×0.35 precision adjustment threads. The stage includes locking screws on the sides, which can be tightened using a 1.5 mm hex wrench to prevent unwanted movement. The M4 threaded holes on the top and bottom offer multiple installation options, with a maximum screw-in depth of 3.5 mm for both threaded holes.
