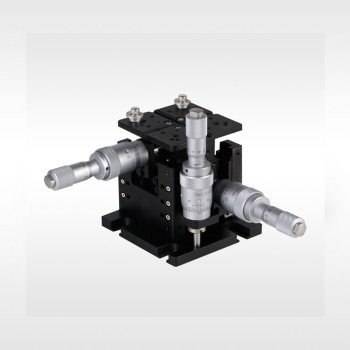

| Coad | 663757 | Type | Compact Three-Axis Translation Stage | |
| Table Size(mm) | 60.0 x 60.0 | Self Weight(Kg) | 0.556 | |
| Maximum Horizontal Load(Kg) | 3 | Maximum Vertical Load(Kg) | 3 | |
| Z-Axis Load Capacity | - | Travel Range | 13.0mm | |
| Maximum Clamping Thickness | - | Thread Specification | M2/M3/M4 | |
| Surface Treatment | Black Anodizing | Displacement Stage Height | 69.5 ± 6.5mm | |
| Dimensions | - | Multi-Axis Assembly Method | - | |
| Bottom Positioning Hole Type | - | Material | 6061-T6 Aluminum Alloy | |
| Adjustment Precision | - | Micrometer Head Minimum Scale | - | |
| Surface and Base Parallelism | - | Motion Parallelism | - | |
| Motion Straightness | ±10μm | Thread Hole Spacing | - | |
| Axes | - | Accessories Included | M6×10mm Hexagon Socket Screws / 4 Pieces; 4mm Hex Wrench / 1 Piece | |
| Driver Position | - | Applicable Optical Component Diameter | - |
Traders City price 2691.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
