| Coad | 663750 | Type | 13 mm Stainless Steel Translation Stage | |
| Table Size(mm) | 40.0 x 40.0 | Self Weight(Kg) | 0.6 | |
| Maximum Horizontal Load(Kg) | 19.7 | Maximum Vertical Load(Kg) | - | |
| Z-Axis Load Capacity | - | Travel Range | 13.0mm | |
| Maximum Clamping Thickness | - | Thread Specification | M2/M3/M6 | |
| Surface Treatment | - | Displacement Stage Height | 32mm | |
| Dimensions | - | Multi-Axis Assembly Method | - | |
| Bottom Positioning Hole Type | - | Material | 440C Stainless Steel | |
| Adjustment Precision | - | Micrometer Head Minimum Scale | 10μm | |
| Surface and Base Parallelism | - | Motion Parallelism | ≤15μm | |
| Motion Straightness | - | Thread Hole Spacing | - | |
| Axes | 2 | Accessories Included | - | |
| Driver Position | End Direct Drive | Applicable Optical Component Diameter | - |

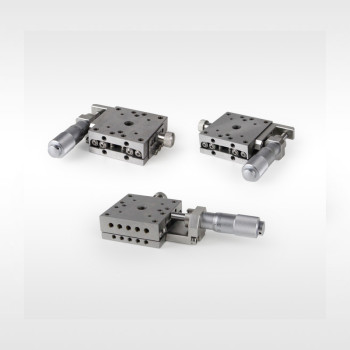

The LBTEK 13 mm stainless steel manual linear displacement stage is available in single-axis, dual-axis, and three-axis configurations. The stage utilizes Gothic rail guides, with an integrated thin structure where the guide rails and stage/base are unified, giving an overall thickness of just 16 mm. The stage surface measures 40 mm × 40 mm and includes M3 threaded holes with a 32 mm pitch and M2 threaded holes with a 20 mm pitch. The micrometer head is available in three drive types: end direct drive, left-side drive, and right-side drive, with a minimum scale of 10 μm. All nominal specifications are fully inspected at the factory, ensuring key performance parameters such as a movement parallelism of 10 μm and a static parallelism within 20 μm. The base is equipped with four M3 countersunk mounting holes, allowing direct attachment to a 25 mm stainless steel displacement stage or other mechanical components with a 32 mm hole pitch using the included four M3×6 hexagon socket cap screws.
The LBTEK single-axis linear displacement stage is available in three drive types: end direct drive, left-side drive, and right-side drive, all featuring single-axis drive with one micrometer head driver. The displacement range is 13 mm, and the micrometer head has a minimum scale of 10 μm. The stage surface is 40 mm × 40 mm, with six M3 threaded holes (four holes with a 32 mm pitch and two holes with a 25 mm pitch), four M2 threaded holes with a 20 mm pitch, and a central M6 threaded hole. The specific distribution of the holes can be found in the drawing on the website.
