| Coad | 663740 | Type | Scissor Lift Platform | |
| Table Size(mm) | 120.0 x 90.0 | Self Weight(Kg) | 1.5 | |
| Maximum Horizontal Load(Kg) | - | Maximum Vertical Load(Kg) | 7 | |
| Z-Axis Load Capacity | - | Travel Range | 40.0mm | |
| Maximum Clamping Thickness | - | Thread Specification | M6 | |
| Surface Treatment | Black Anodizing | Displacement Stage Height | - | |
| Dimensions | - | Multi-Axis Assembly Method | - | |
| Bottom Positioning Hole Type | M6 Countersunk Hole | Material | Aluminum Alloy | |
| Adjustment Precision | 2mm per turn | Micrometer Head Minimum Scale | - | |
| Surface and Base Parallelism | - | Motion Parallelism | 200μm | |
| Motion Straightness | - | Thread Hole Spacing | - | |
| Axes | - | Accessories Included | 4 M6×12mm Hexagon Socket Head Cap Screws, 5mm Short-Head Hex Wrench | |
| Driver Position | - | Applicable Optical Component Diameter | - |

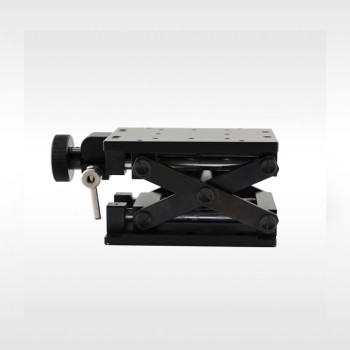

The LBTEK scissor lift table provides stable height adjustment with high load-bearing capacity and excellent parallelism, making it ideal for mounting optical and mechanical components that require height adjustment. The lift table features a scissor support structure with precision-ground lead screw drive and a dual-rail five-axis over-positioning design or a 16-arm double-bow design, ensuring stable operation. The height is adjusted via a large knurled handwheel, which includes a locking mechanism to secure the desired height and ensure long-term stability.
The LBTEK scissor lift table offers height adjustment with a range of 65 mm to 105 mm from the base installation surface to the stage surface. It has a high load-bearing capacity and excellent parallelism, making it ideal for optical and mechanical components that need adjustable height. The adjustment handwheel can be locked using a locking lever on the side. The stage surface includes 21 M6 threaded holes, and the base has 6 M6 keyhole mounting slots for securing the lift table. The LBTEK scissor lift table comes with 4 M6 hexagon socket head cap screws and a 5 mm short-head hexagon wrench for installation.
