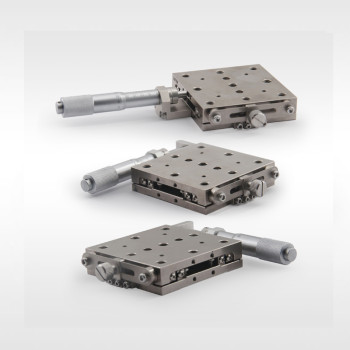

| Coad | 663736 | Type | 25 mm Travel Stainless Steel Manual Translation Stage | |
| Table Size(mm) | 65.0 x 65.0 | Self Weight(Kg) | 0.95 | |
| Maximum Horizontal Load(Kg) | 19.5 | Maximum Vertical Load(Kg) | - | |
| Z-Axis Load Capacity | - | Travel Range | 25.0mm | |
| Maximum Clamping Thickness | - | Thread Specification | M6 | |
| Surface Treatment | Nickel Plating | Displacement Stage Height | 32mm | |
| Dimensions | 168.1 x 152.0 x 35.0mm | Multi-Axis Assembly Method | - | |
| Bottom Positioning Hole Type | 5.0mm | Material | 440C Stainless Steel | |
| Adjustment Precision | - | Micrometer Head Minimum Scale | 10μm | |
| Surface and Base Parallelism | - | Motion Parallelism | ≤10μm | |
| Motion Straightness | - | Thread Hole Spacing | 25mm | |
| Axes | 2 | Accessories Included | M6×6mm Thin-Head Hexagon Socket Cap Screws, Quantity: 4；Ø5×8mm Cylindrical Pins, Quantity: 2；3mm Hex Wrench, Quantity: 1 | |
| Driver Position | End Direct Drive | Applicable Optical Component Diameter | - |
Traders City price 659.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
