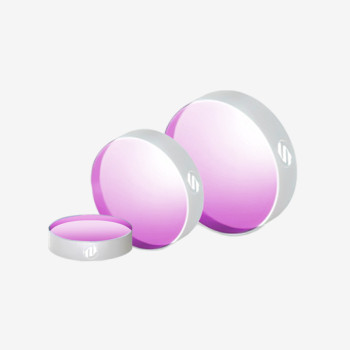

| Coad | 663622 | Type | Damage-Resistant 890-2940nm Femtosecond Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1 mm | Thickness Tolerance | +0/-0.1 mm | |
| Wavelength(nm) | 1630 - 1920 | AOI(°) | 45 | |
| Substrate | UVFS | Clear Aperture | ≥23mm | |
| Parallelism | <1 arcmin | Surface Quality S1 | 20-10 S-D as per MIL-PRF-13830B | |
| Surface Quality S2 | Polished | Surface Flatness | <λ/8@633nm over 10mm dia. CA | |
| GDD | |GDD Rp<200fs^2|@1630nm-1900nm | Laser Damage Threshold | >0.1J/cm2,1700nm,17kHz,1ps | |

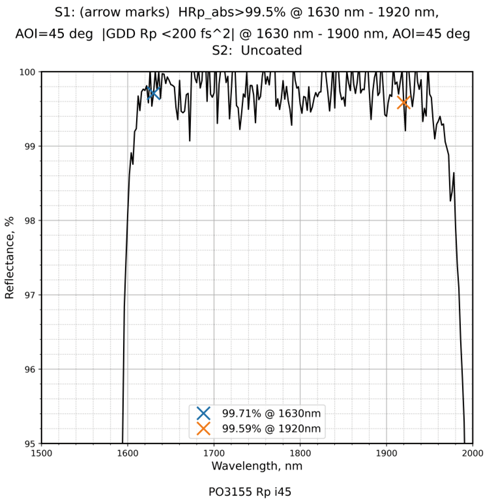

| Coating Type | IBS | Coating Specifications | S1:HRp_abs>99.5%@1630nm-1920nm / S2:Uncoated |
Traders City price 351.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
