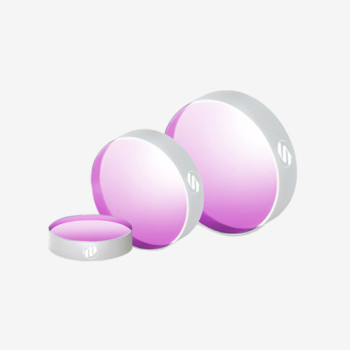

| Coad | 663615 | Type | Damage-Resistant 890-2940nm Femtosecond Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1 mm | Thickness Tolerance | +0/-0.1 mm | |
| Wavelength(nm) | 1064 | AOI(°) | 40 - 50 | |
| Substrate | UVFS | Clear Aperture | ≥20mm | |
| Parallelism | <5 arcmin | Surface Quality S1 | 20-10 S-D per CA as per MIL | |
| Surface Quality S2 | Polished | Surface Flatness | <λ/4@633nm per 17mm dia | |
| GDD | - | Laser Damage Threshold | - | |

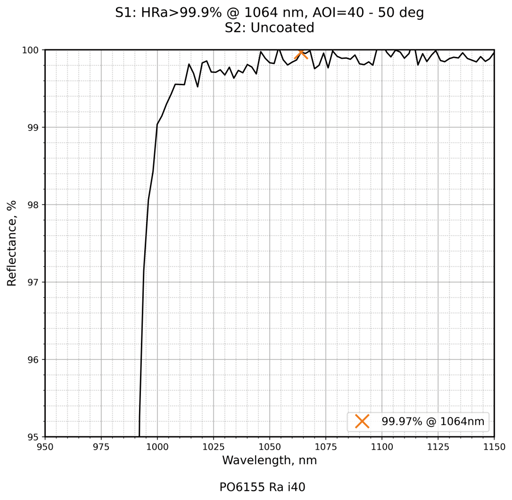

| Coating Type | IBS | Coating Specifications | S1:HRa>99.9%@1064nm / S2:Uncoated |
Traders City price 165.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
