| Coad | 663610 | Type | Damage-Resistant 890-2940nm Femtosecond Mirror | |
| Diameter(mm) | 12.70 | Thickness(mm) | 3.00 | |
| Diameter Tolerance | +0/-0.1 mm | Thickness Tolerance | +0/-0.1 mm | |
| Wavelength(nm) | 910 - 930 | AOI(°) | 45 | |
| Substrate | UVFS | Clear Aperture | >80% | |
| Parallelism | <5 arcmin | Surface Quality S1 | 20-10 S-D over CA (as per MIL-PRF-138030B) | |
| Surface Quality S2 | Inspection polished | Surface Flatness | λ/8@633nm over 5mm aperture | |
| GDD | |GDD Rs|<10fs^2,|GDD Rp|<20fs^2@910-930nm | Laser Damage Threshold | - | |

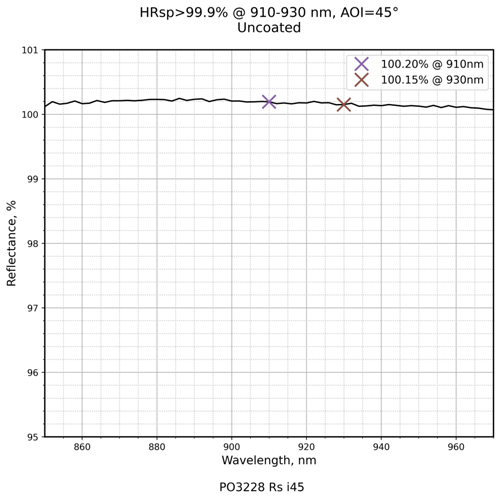

| Coating Type | IBS | Coating Specifications | S1:HRsp>99.9%@910-930nm / S2:Uncoated |
Traders City price 122.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
