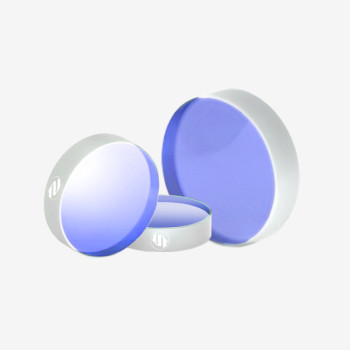

| Coad | 663605 | Type | Damage-Resistant Multi-Wavelength Femtosecond Mirror | |
| Diameter(mm) | 38.10 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 2940 + 1535 | AOI(°) | 45 | |
| Substrate | UVFS | Clear Aperture | ≥31mm | |
| Parallelism | <10 arcsec | Surface Quality S1 | 20-10 S-D per CA (following MIL-PRF-13830B standard) | |
| Surface Quality S2 | 20-10 S-D per CA (following MIL-PRF-13830B standard) | Surface Flatness | <λ/4@633nm over 15mm dia. CA | |
| GDD | - | Laser Damage Threshold | - | |

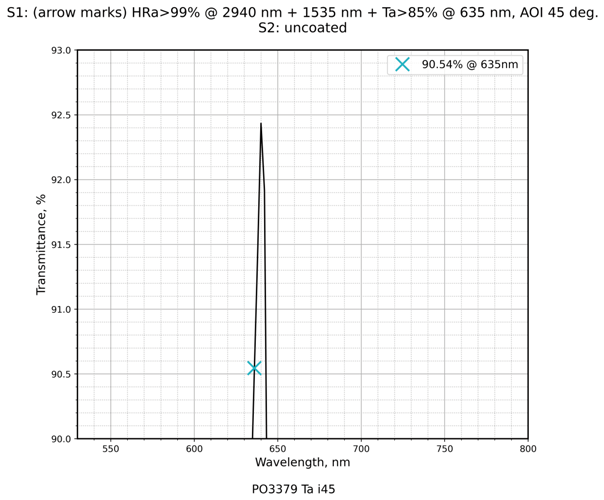

| Coating Type | IBS | Coating Specifications | S1:HRa>99%@2940nm+1535nm+Ta>85%@635nm / S2:Uncoated |
Traders City price 700.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
