| Coad | 663603 | Type | Damage-Resistant Multi-Wavelength Femtosecond Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 1064 + 635 - 650 + 532 | AOI(°) | 45 | |
| Substrate | UVFS | Clear Aperture | ≥20mm | |
| Parallelism | <5 arcmin | Surface Quality S1 | 20-10 S-D MIL-PRF-13830B | |
| Surface Quality S2 | Ground finish | Surface Flatness | <λ/4@633nm over CA | |
| GDD | - | Laser Damage Threshold | >10J/cm² @1064nm, 10ns&>5J/cm² @532nm, 10ns (S-on-1, S=1000, 200um) | |

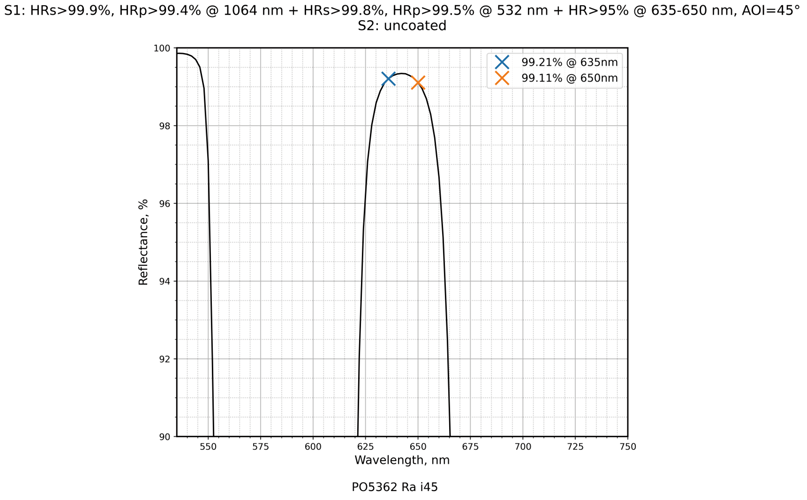

| Coating Type | IBS | Coating Specifications | S1:HRs>99.9%,HRp>99.4%@1064nm+HRs>99.8%,HRp>99.5%@532nm+HR>95%@635-650nm / S2:Uncoated |
Traders City price 274.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
