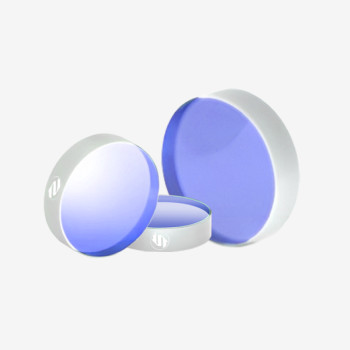

| Coad | 663602 | Type | Damage-Resistant Multi-Wavelength Femtosecond Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 3.10 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.2mm | |
| Wavelength(nm) | 1064 + 635 - 650 + 532 | AOI(°) | 45 | |
| Substrate | UVFS | Clear Aperture | ≥22mm | |
| Parallelism | <5 arcmin | Surface Quality S1 | 20-10 S-D | |
| Surface Quality S2 | 40-20 S-D | Surface Flatness | λ/6@633nm over any 6mm diameter area | |
| GDD | - | Laser Damage Threshold | - | |

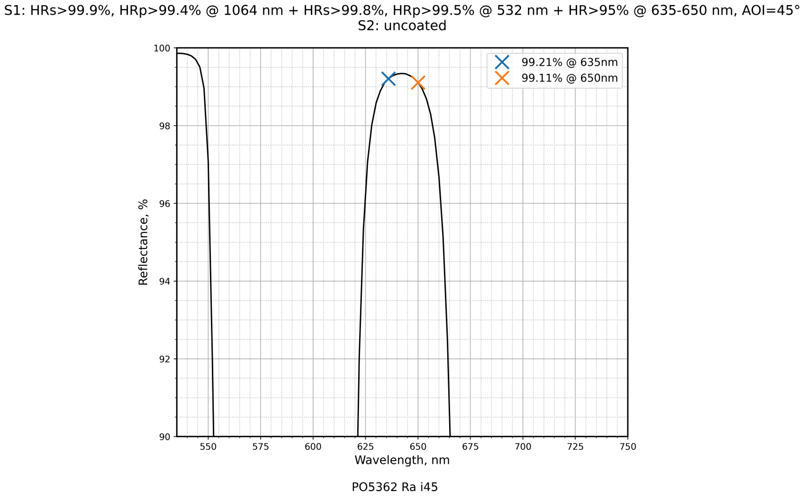

| Coating Type | IBS | Coating Specifications | S1:HRs>99.9%,HRp>99.4%@1064nm+HRs>99.8%,HRp>99.5%@532nm+HR>95%@635-650nm / S2:Uncoated |
Traders City price 231.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
