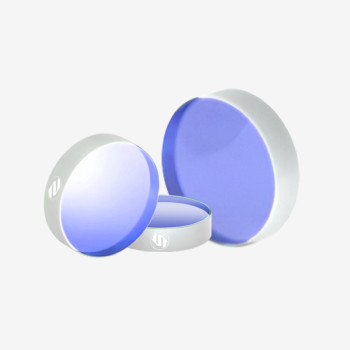

| Coad | 663601 | Type | Damage-Resistant Multi-Wavelength Femtosecond Mirror | |
| Diameter(mm) | 25.00 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 1064 + 532 + 355 | AOI(°) | 45 | |
| Substrate | UVFS | Clear Aperture | >85% | |
| Parallelism | <10 arcsec | Surface Quality S1 | 20-10 S-D over CA as per MIL-PRF-13830B | |
| Surface Quality S2 | Polished | Surface Flatness | <λ/8@633nm per CA = 20mm and L/10 best effort | |
| GDD | - | Laser Damage Threshold | - | |

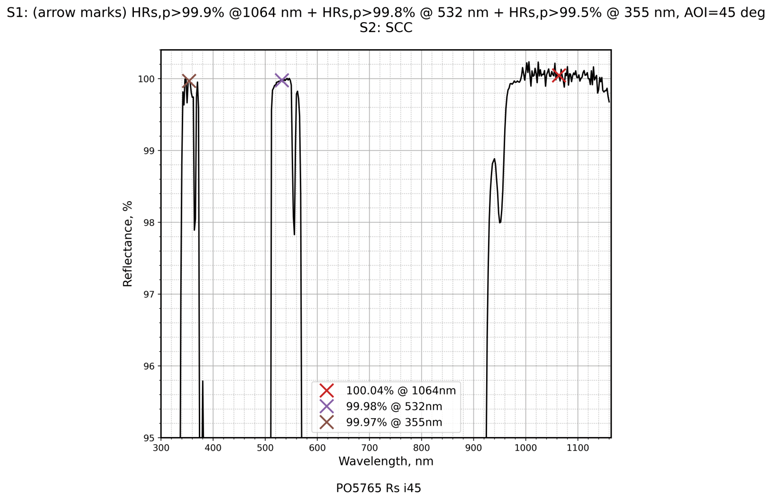

| Coating Type | IBS | Coating Specifications | S1:HRs,p>99.9%@1064nm+HRs,p>99.8%@532nm+HRs,p>99.5%@355nm / S2:SCC |
Traders City price 547.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
