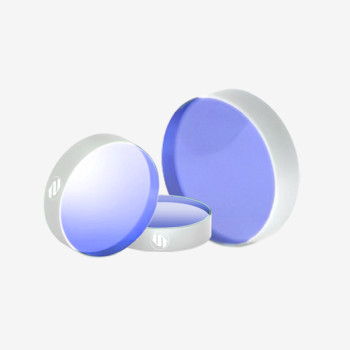

| Coad | 663599 | Type | Damage-Resistant Multi-Wavelength Femtosecond Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 1064 + 532 | AOI(°) | 45 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | 21mm | |
| Parallelism | <10 arcsec | Surface Quality S1 | 10-5 S-D | |
| Surface Quality S2 | 10-5 S-D | Surface Flatness | <λ/2@633nm | |
| GDD | - | Laser Damage Threshold | >20J/cm² (6ns) @1064nm, 10Hz (best Effort) > 10 J/cm² (6ns) @532nm, 10Hz | |

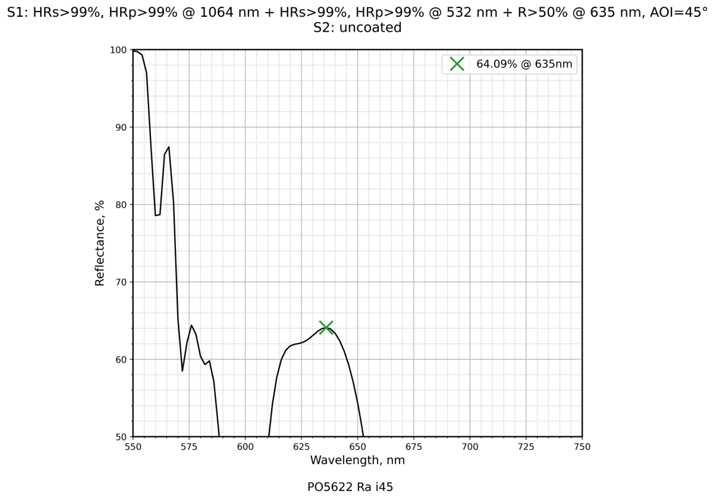

| Coating Type | IBS | Coating Specifications | S1:HRs>99%,HRp>99%@1064nm+HRs>99%,HRp>99%@532nm+R>50%@635nm / S2:Uncoated |
Traders City price 216.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
