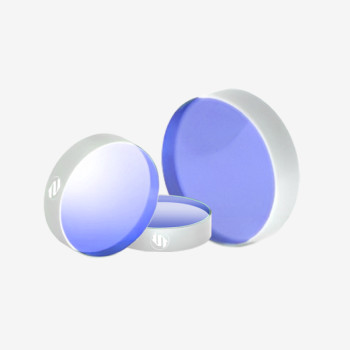

| Coad | 663598 | Type | Damage-Resistant Multi-Wavelength Femtosecond Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 1064 + 532 | AOI(°) | 45 | |
| Substrate | UVFS | Clear Aperture | >80% | |
| Parallelism | <5 arcmin | Surface Quality S1 | 20-10 S-D over CA following MIL standard | |
| Surface Quality S2 | - | Surface Flatness | λ/8@633nm over any 10mm CA | |
| GDD | - | Laser Damage Threshold | - | |

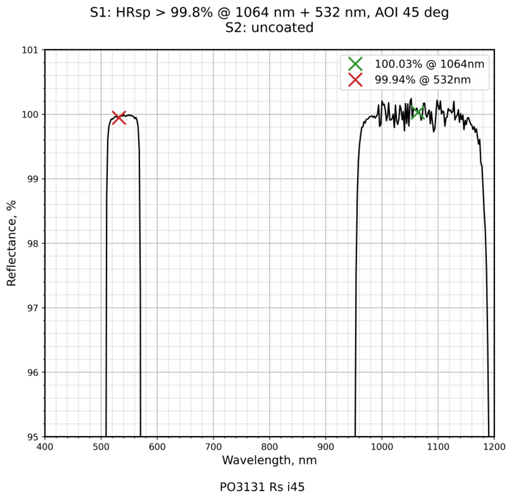

| Coating Type | IBS | Coating Specifications | S1:HRsp>99.8%@1064nm+532nm / S2:Uncoated |
Traders City price 317.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
