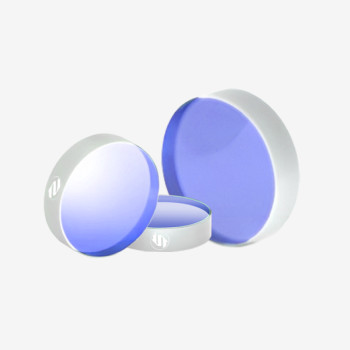

| Coad | 663597 | Type | Damage-Resistant Multi-Wavelength Femtosecond Mirror | |
| Diameter(mm) | 25.00 | Thickness(mm) | 3.10 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.2mm | |
| Wavelength(nm) | 1064 + 532 | AOI(°) | 45 | |
| Substrate | UVFS | Clear Aperture | 20mm | |
| Parallelism | <5 arcmin | Surface Quality S1 | 20-10 S-D (Acc. MIL-PRF-13830) | |
| Surface Quality S2 | 20-10 S-D (Acc. MIL-PRF-13830) | Surface Flatness | λ/2@633nm over 17mm aperture | |
| GDD | - | Laser Damage Threshold | - | |

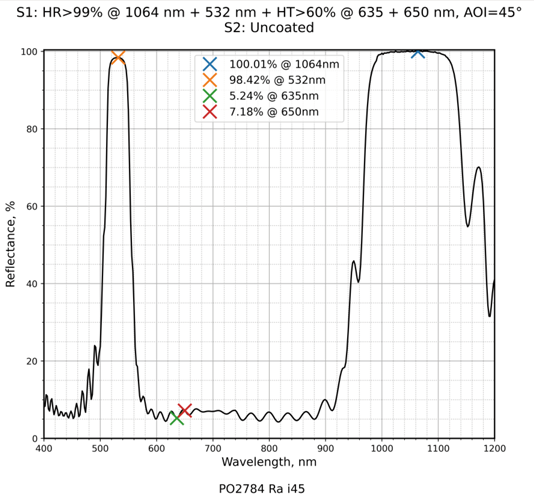

| Coating Type | IBS | Coating Specifications | S1:HR>99%@1064nm+HR>98%@532nm+HT>60%@635+650nm / S2:Uncoated |
Traders City price 218.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
