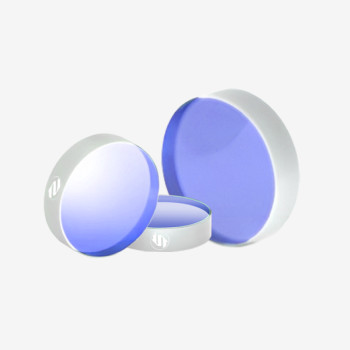

| Coad | 663596 | Type | Damage-Resistant Multi-Wavelength Femtosecond Mirror | |
| Diameter(mm) | 38.10 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 1030 + 400 - 800 | AOI(°) | 45 | |
| Substrate | UVFS | Clear Aperture | ≥32.5mm | |
| Parallelism | <5 arcmin | Surface Quality S1 | 20-10 S-D over CA MIL-PRF-13830B | |
| Surface Quality S2 | Commercial polishing (80-50 S-D) | Surface Flatness | <λ/6@633nm over any 13mm aperture within CA | |
| GDD | - | Laser Damage Threshold | - | |

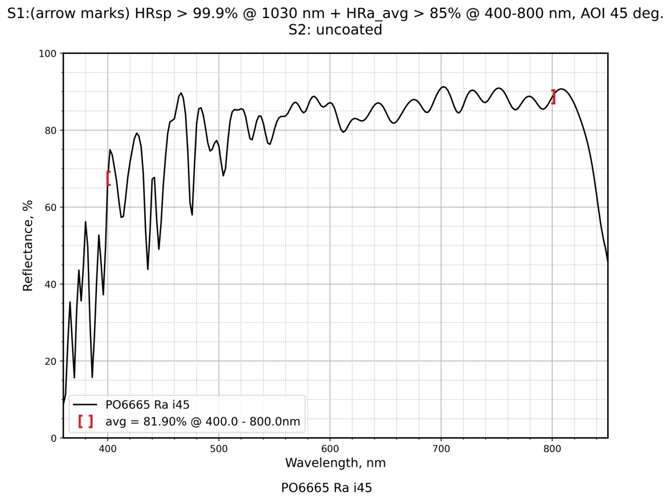

| Coating Type | IBS | Coating Specifications | S1:HRsp>99.9%@1030nm+HRa_avg>80%@400-800nm / S2:Uncoated |
Traders City price 475.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
