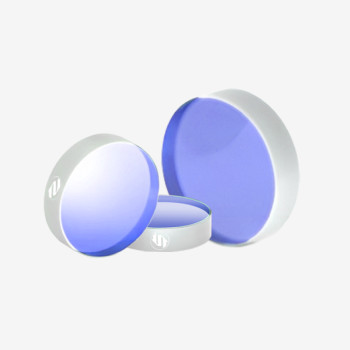

| Coad | 663595 | Type | Damage-Resistant Multi-Wavelength Femtosecond Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 1030 + 515 | AOI(°) | 45 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | >80% | |
| Parallelism | <10 arcsec | Surface Quality S1 | 20-10 S-D (MIL-PRF-13830B) | |
| Surface Quality S2 | 20-10 S-D (MIL-PRF-13830B) | Surface Flatness | <λ/10@633nm over 10mm area | |
| GDD | |GDD Rs|<50fs²+HRp>99.8%|GDD Rp|<35fs²@1020-1060nm | Laser Damage Threshold | - | |
| Coating Type | IBS | Coating Specifications | S1:HRs>99.9%@510-530nm+HRp>99.8%@1020-1060nm / S2:Uncoated |
Traders City price 202.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
