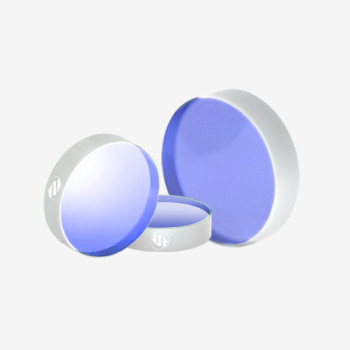

| Coad | 663593 | Type | Damage-Resistant Multi-Wavelength Femtosecond Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 1030 + 515 | AOI(°) | 45 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | ≥22mm | |
| Parallelism | <5 arcmin | Surface Quality S1 | 10-5 S-D per CA (MIL-PRF-13830B) | |
| Surface Quality S2 | Inspection polished | Surface Flatness | <λ/6@633nm over dia. 20mm aperture | |
| GDD | |GDD(Rs)|<35fs^2@500-540nm |GDD(Rp)|<50fs^2@510-525nm |GDD(Rs)|<20fs^2@1000-1070nm|GDD(Rp)|<40fs^2@1010-1055nm | Laser Damage Threshold | - | |

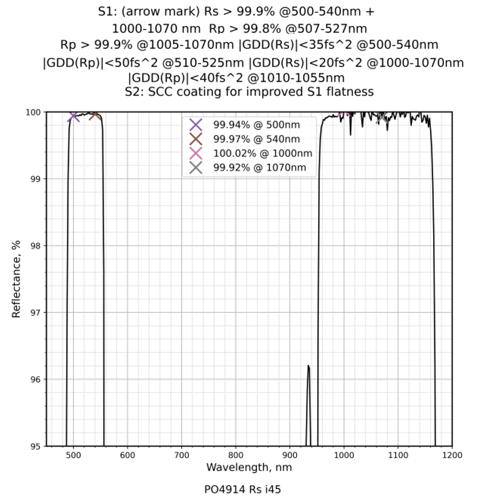

| Coating Type | IBS | Coating Specifications | S1:Rs>99.9%@500-540nm+1000-1070nm,Rp>99.8%@507-527nmRp>99.9%@1005-1070nm / S2:SCC |
Traders City price 202.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
