| Coad | 663589 | Type | Damage-Resistant Multi-Wavelength Femtosecond Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 1030 + 515 | AOI(°) | 45 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | ≥20mm | |
| Parallelism | <10 arcsec | Surface Quality S1 | 10-5 S-D per CA (MIL-PRF-13830B) | |
| Surface Quality S2 | Commercial polished | Surface Flatness | <λ/8@633nm per CA | |
| GDD | |GDD Rs|<10fs^2,|GDD Rp|<20fs^2@1030nm&515nm | Laser Damage Threshold | - | |

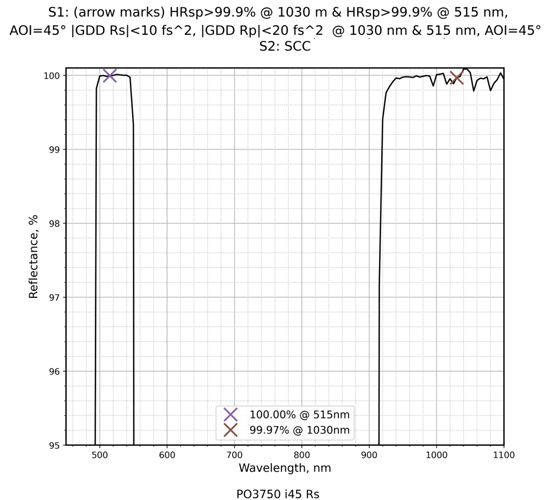

| Coating Type | IBS | Coating Specifications | S1:HRsp>99.9%@1030m&HRsp>99.9%@515nm / S2:SCC |
Traders City price 231.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
