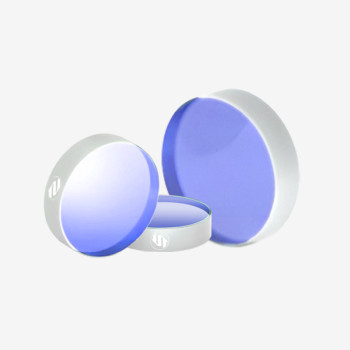

| Coad | 663588 | Type | Damage-Resistant Multi-Wavelength Femtosecond Mirror | |
| Diameter(mm) | 12.70 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 1030 + 515 | AOI(°) | 45 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | ≥10mm | |
| Parallelism | <10 arcsec | Surface Quality S1 | 10-5 S-D per CA (MIL-PRF-13830B) | |
| Surface Quality S2 | Commercial polished | Surface Flatness | <λ/8@633nm over 10mm CA | |
| GDD | Low GDD | Laser Damage Threshold | - | |

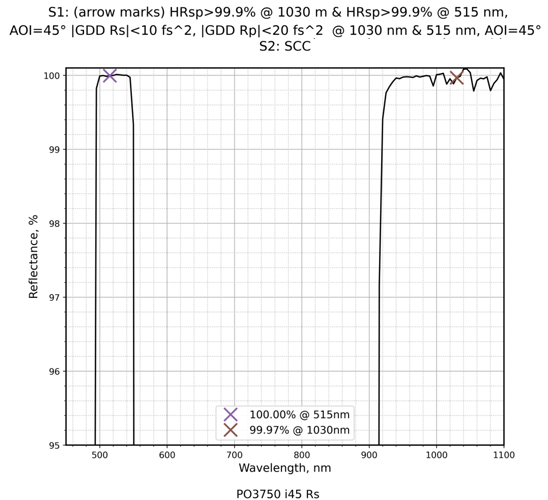

| Coating Type | IBS | Coating Specifications | S1:HRsp>99.9%@1030m&HRsp>99.9%@515nm / S2:Uncoated |
