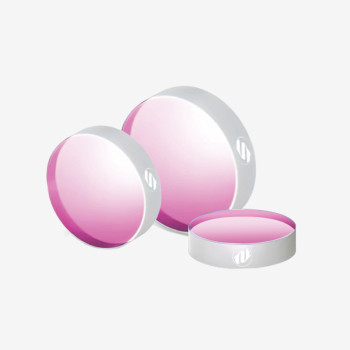

| Coad | 663584 | Type | Damage-Resistant Green Light Femtosecond Mirror | |
| Diameter(mm) | 50.80 | Thickness(mm) | 9.52 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 515 | AOI(°) | 45 | |
| Substrate | UVFS | Clear Aperture | ≥40mm | |
| Parallelism | <5 arcmin | Surface Quality S1 | 20-10 S-D over CA (MIL-PRF-13830B) | |
| Surface Quality S2 | - | Surface Flatness | λ/10@633mm over any 15mm aperture within CA | |
| GDD | - | Laser Damage Threshold | >0.3J/cm²,515nm,500fs,10kHz,p-pol >0.45J/cm²,515nm,500fs,10kHz,s-pol >1.4J/cm²,515nm,10ps,10kHz,p-pol >2.4J/cm²,515nm,10ps,10kHz,s-pol | |

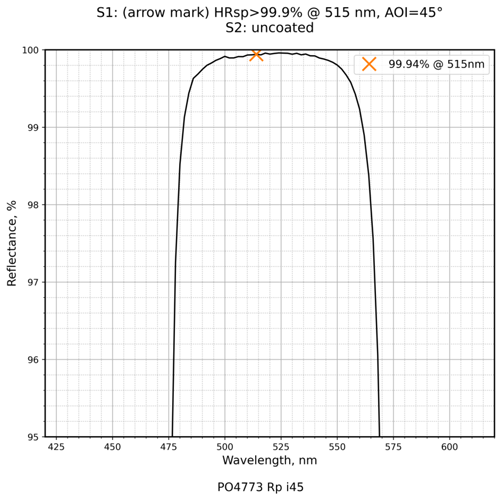

| Coating Type | IBS | Coating Specifications | S1:HRsp>99.9%@515nm / S2:Uncoated |
Traders City price 504.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
