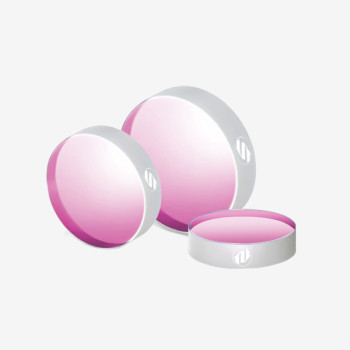

| Coad | 663582 | Type | Damage-Resistant Green Light Femtosecond Mirror | |
| Diameter(mm) | 12.70 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 515 | AOI(°) | 45 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | ≥10mm | |
| Parallelism | <10 arcsec | Surface Quality S1 | 10-5 S-D over CA (MIL-PRF-13830B) | |
| Surface Quality S2 | Commercial polish | Surface Flatness | λ/10@633mm over any 8mm aperture within CA | |
| GDD | - | Laser Damage Threshold | >0.3J/cm²,515nm,500fs,10kHz,p-pol >0.45J/cm²,515nm,500fs,10kHz,s-pol >1.4J/cm²,515nm,10ps,10kHz,p-pol >2.4J/cm²,515nm,10ps,10kHz,s-pol | |

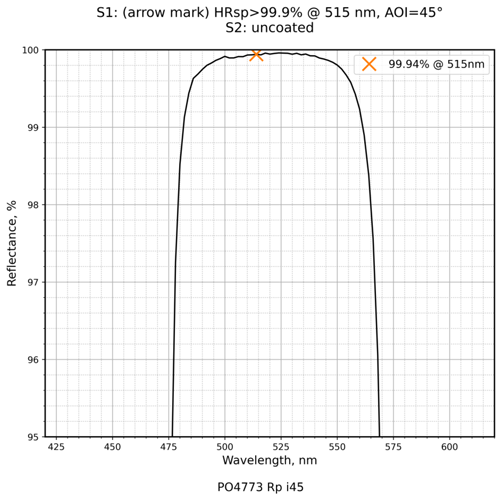

| Coating Type | IBS | Coating Specifications | S1:HRsp>99.9%@515nm / S2:Uncoated |
Traders City price 202.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
