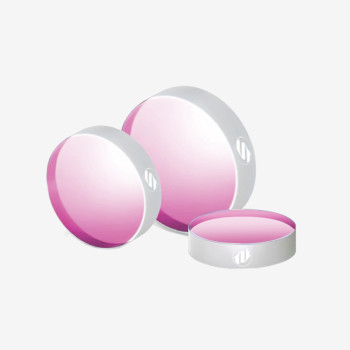

| Coad | 663579 | Type | Damage-Resistant Green Light Femtosecond Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 515 | AOI(°) | 0 - 45 | |
| Substrate | UVFS | Clear Aperture | >90% | |
| Parallelism | <5 arcmin | Surface Quality S1 | 10-5 S-D (MIL-PRF-13830B) | |
| Surface Quality S2 | - | Surface Flatness | λ/8@633nm over 15mm area | |
| GDD | Low GDD | Laser Damage Threshold | >0.15J/cm2,515nm,500fs,10kHz,p-pol;45deg >0.3J/cm2,515nm,500fs,10kHz,s-pol;45deg >0.12J/cm2,515nm,500fs,10kHz;0deg | |

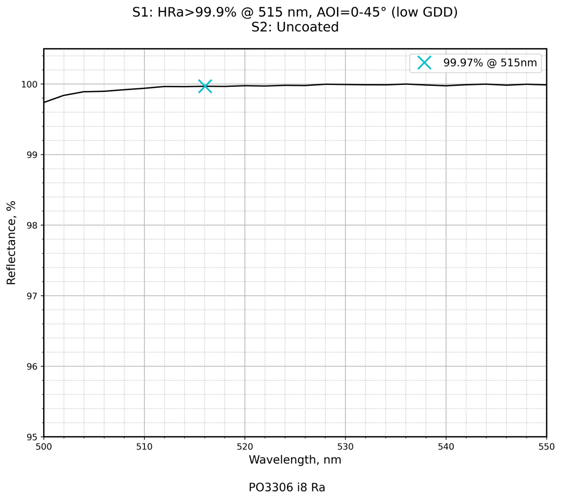

| Coating Type | IBS | Coating Specifications | S1:HRa>99.9%@515nm / S2:Uncoated |
Traders City price 209.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
