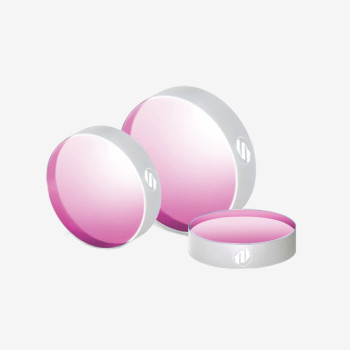

| Coad | 663575 | Type | Damage-Resistant Green Light Femtosecond Mirror | |
| Diameter(mm) | 12.70 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 500 - 530 | AOI(°) | 0 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | >80% | |
| Parallelism | <5 arcmin | Surface Quality S1 | 10-5 S-D per CA | |
| Surface Quality S2 | - | Surface Flatness | <λ/8@633nm per CA | |
| GDD | |GDD R|<10fs² | Laser Damage Threshold | >0.12J/cm²,515nm,500fs,10kHz >0.7J/cm²,515nm,10ps,10kHz | |

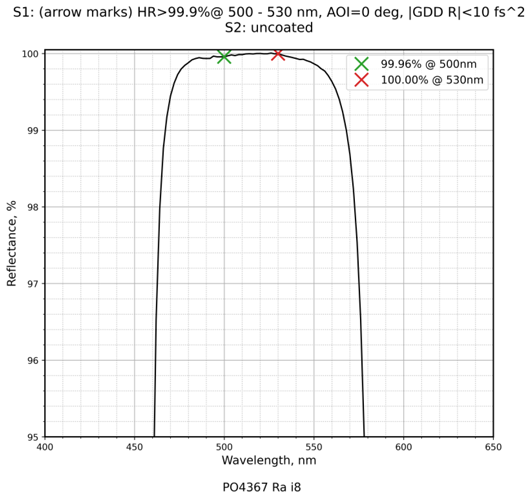

| Coating Type | IBS | Coating Specifications | S1:HR>99.9%@500-530nm / S2:Uncoated |
Traders City price 122.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
