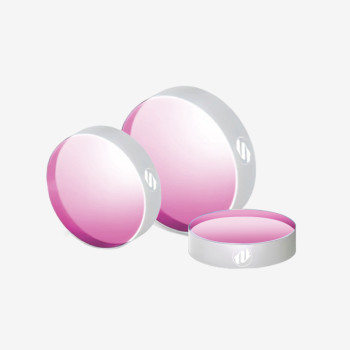

| Coad | 663573 | Type | Damage-Resistant Green Light Femtosecond Mirror | |
| Diameter(mm) | 50.80 | Thickness(mm) | 9.52 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 500 - 530 | AOI(°) | 45 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | ≥40mm | |
| Parallelism | <5 arcmin | Surface Quality S1 | 20-10 S-D over CA (MIL-PRF-13830B) | |
| Surface Quality S2 | Commercial polished | Surface Flatness | <λ/8@633nm over CA | |
| GDD | |GDD Rs,Rp|<20fs²@500-530nm | Laser Damage Threshold | >0.15J/cm²,515nm,500fs,10kHz,p-pol >0.3J/cm²,515nm,500fs,10kHz,s-pol >0.8J/cm²,515nm,10ps,10kHz,p-pol >1.3J/cm²,515nm,10ps,10kHz,s-pol | |

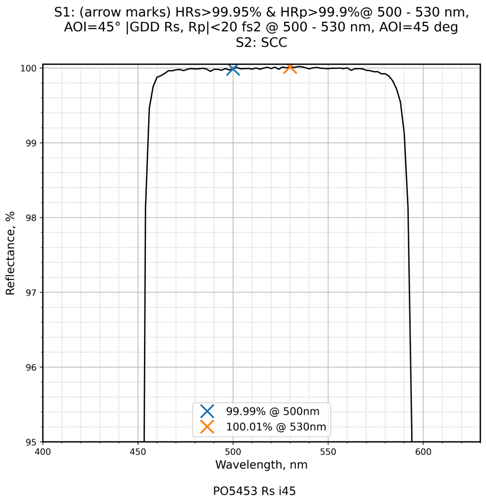

| Coating Type | IBS | Coating Specifications | S1:HRs>99.95%&HRp>99.9%@500-530nm / S2:SCC |
Traders City price 490.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
