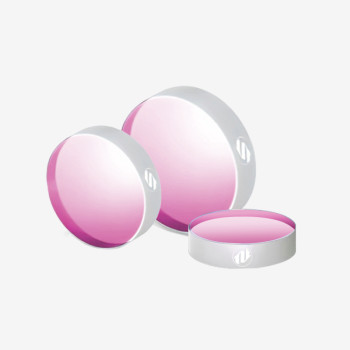

| Coad | 663572 | Type | Damage-Resistant Green Light Femtosecond Mirror | |
| Diameter(mm) | 30.00 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 500 - 530 | AOI(°) | 45 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | ≥24mm | |
| Parallelism | <5 arcmin | Surface Quality S1 | 20-10 S-D over CA (MIL-PRF-13830B) | |
| Surface Quality S2 | - | Surface Flatness | <λ/8@633nm over any 10mm CA | |
| GDD | |GDD Rs,Rp|<20fs²@500-530nm | Laser Damage Threshold | - | |

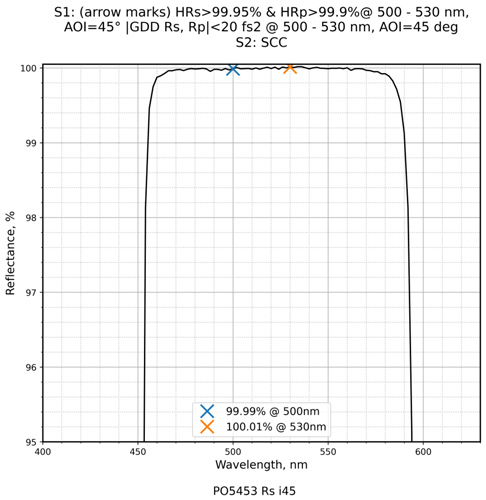

| Coating Type | IBS | Coating Specifications | S1:HRs>99.95%&HRp>99.9%@500-530nm / S2:SCC |
Traders City price 271.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
