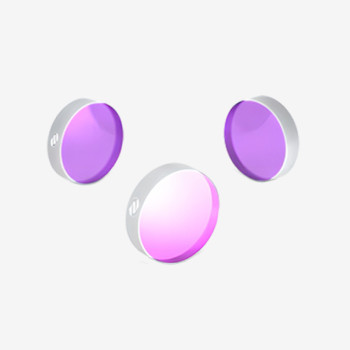

| Coad | 663562 | Type | Damage-Resistant 800nm Femtosecond Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 730 - 870 | AOI(°) | 0 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | ≥22mm | |
| Parallelism | <10 arcsec | Surface Quality S1 | 20-10 S-D as per MIL-PRF-13830B | |
| Surface Quality S2 | Commercial polish (80-50 S-D) | Surface Flatness | <λ/8@633nm over any 14mm dia within CA | |
| GDD | |GDDRa|<20fs^2@735-866nm | Laser Damage Threshold | - | |

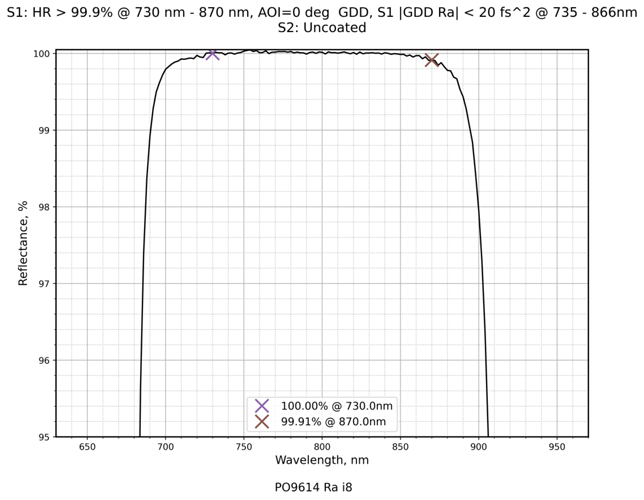

| Coating Type | IBS | Coating Specifications | S1:HR>99.9%@730nm-870nm / S2:Uncoated |
Traders City price 158.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
