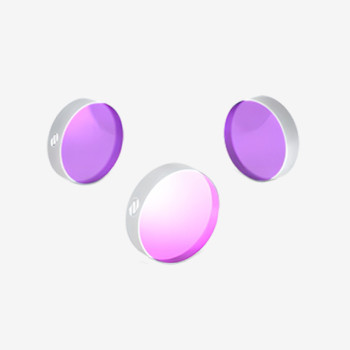

| Coad | 663560 | Type | Damage-Resistant 800nm Femtosecond Mirror | |
| Diameter(mm) | 12.70 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 730 - 870 | AOI(°) | 45 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | >80% | |
| Parallelism | <10 arcsec | Surface Quality S1 | 10-5 S-D per CA | |
| Surface Quality S2 | Commercial polish | Surface Flatness | <λ/10@633nm CA | |
| GDD | 0±20fs2@700-900nm,s-pol 0±20fs2@740-860nm,p-pol | Laser Damage Threshold | - | |

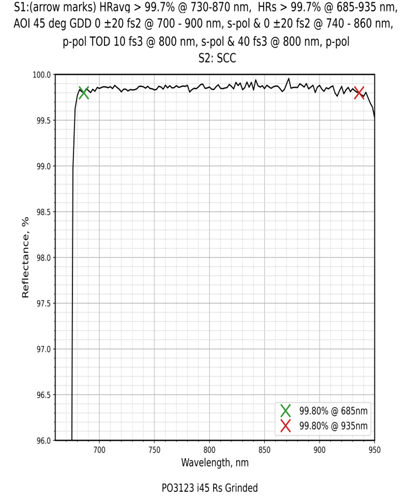

| Coating Type | IBS | Coating Specifications | S1:HRavg>99.7%@730-870nm,HRs>99.7%@685-935nm / S2:SCC |
Traders City price 225.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
