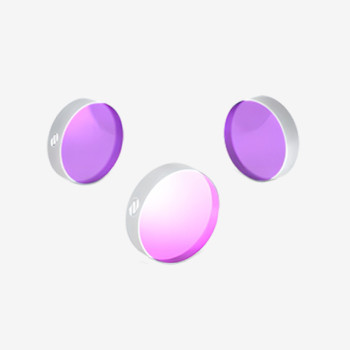

| Coad | 663554 | Type | Damage-Resistant 800nm Femtosecond Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 700 - 900 | AOI(°) | 45 | |
| Substrate | UVFS | Clear Aperture | >90% | |
| Parallelism | <10 arcsec | Surface Quality S1 | 10-5 S-D (MIL-PRF-13830B) | |
| Surface Quality S2 | - | Surface Flatness | <λ/8@633nm over CA | |
| GDD | |GDDrs|<20fs2 | Laser Damage Threshold | >0.2J/cm2, 800nm, 100fs, 100Hz, p-pol | |

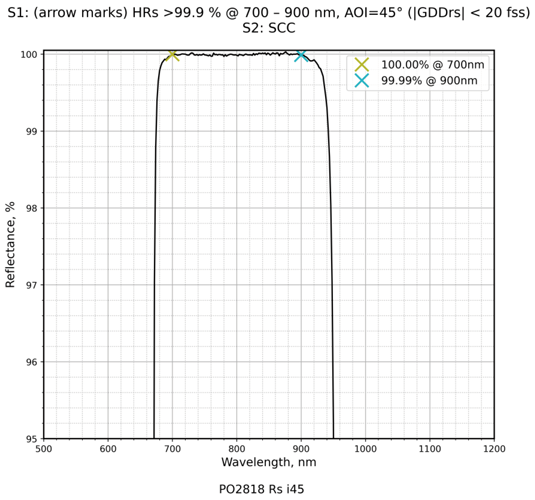

| Coating Type | IBS | Coating Specifications | S1:HRs>99.9%@700-900nm,HRp>99.5%@730-870nm / S2:SCC |
Traders City price 267.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
