| Coad | 663547 | Type | Damage-Resistant 1030nm Femtosecond Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 9.50 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.15mm | |
| Wavelength(nm) | 1030 + 630 - 660 | AOI(°) | 0 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | 20mm | |
| Parallelism | <5 arcmin | Surface Quality S1 | 10-5 acc. MIL-PRF-13830B | |
| Surface Quality S2 | Commercial polished | Surface Flatness | λ/6@633nm over CA | |
| GDD | - | Laser Damage Threshold | >10MW/cm²,1030nm,CW; >0.3J/cm²,1030nm,500fs,10kHz | |

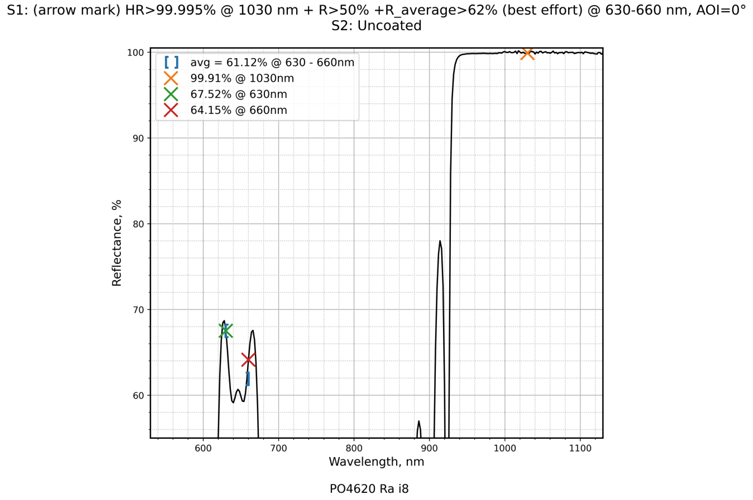

| Coating Type | IBS | Coating Specifications | S1:HR>99.995%@1030nm+HR>50%@630-660nm / S2:Uncoated |
Traders City price 202.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
