| Coad | 663545 | Type | Damage-Resistant 1030nm Femtosecond Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 1030 | AOI(°) | 0 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | ≥20mm | |
| Parallelism | <5 arcmin | Surface Quality S1 | 20-10 S-D per CA MIL-PRF-13830B | |
| Surface Quality S2 | Polished (<60-40 S-D) | Surface Flatness | <λ/6@633nm per CA | |
| GDD | - | Laser Damage Threshold | >4J/cm²,1030nm,500ps,100Hz(S-on-1,S=1000,200umbeamsize) | |

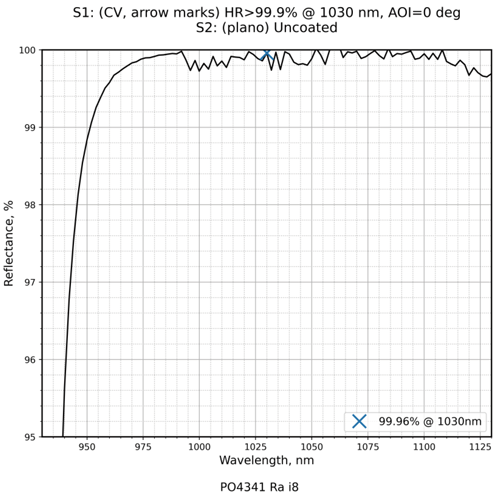

| Coating Type | IBS | Coating Specifications | S1:HR>99.9%@1030nm / S2:Uncoated |
Traders City price 202.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
