| Coad | 663541 | Type | Damage-Resistant 1030nm Femtosecond Mirror | |
| Diameter(mm) | 12.70 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 1030 | AOI(°) | 0 - 45 | |
| Substrate | UVFS | Clear Aperture | >80% | |
| Parallelism | <5 arcmin | Surface Quality S1 | 10-5 S-D per CA as per MIL | |
| Surface Quality S2 | - | Surface Flatness | <λ/6@633nm over CA | |
| GDD | |GDD R|<30fs²@1030nm | Laser Damage Threshold | >0.35J/cm2,1030nm,500fs,10kHz,p-pol;45deg >0.65J/cm2,1030nm,500fs,10kHz,s-pol;45deg >0.25J/cm2,1030nm,500fs,10kHz;0deg | |

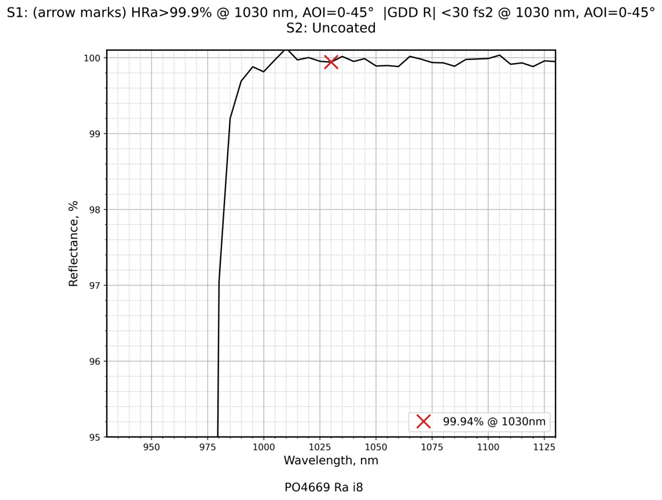

| Coating Type | IBS | Coating Specifications | S1:HRa>99.9%@1030nm / S2:Uncoated |
Traders City price 158.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
