| Coad | 663539 | Type | Damage-Resistant 1030nm Femtosecond Mirror | |
| Diameter(mm) | 25.40 | Thickness(mm) | 6.35 | |
| Diameter Tolerance | +0/-0.1mm | Thickness Tolerance | +0/-0.1mm | |
| Wavelength(nm) | 1025 - 1035 | AOI(°) | 40 - 50 | |
| Substrate | UVFS Corning 7980 0F | Clear Aperture | ≥20mm | |
| Parallelism | <5 arcmin | Surface Quality S1 | 20-10 S-D per CA (MIL-PRF-13830B) | |
| Surface Quality S2 | Polished (<60-40 S-D) | Surface Flatness | <λ/8@633nm per CA | |
| GDD | - | Laser Damage Threshold | >1J/cm²,1030nm,500fs,100Hz(S-on-1,S=1000) | |

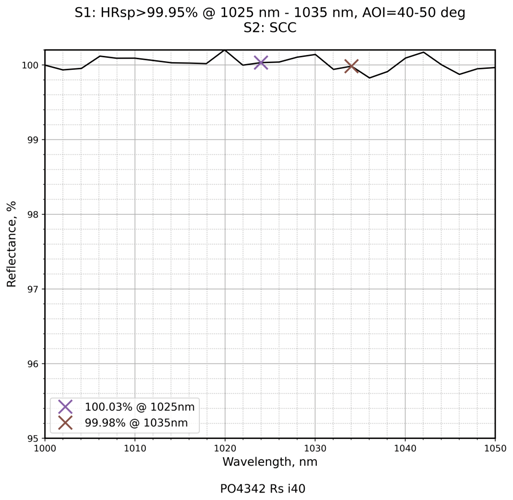

| Coating Type | IBS | Coating Specifications | S1:HRsp>99.95%@1025nm-1035nm / S2:SCC |
Traders City price 223.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
